High-Performance Compact Vertical Scanner
Precision Induction Hardening for the Modern Factory

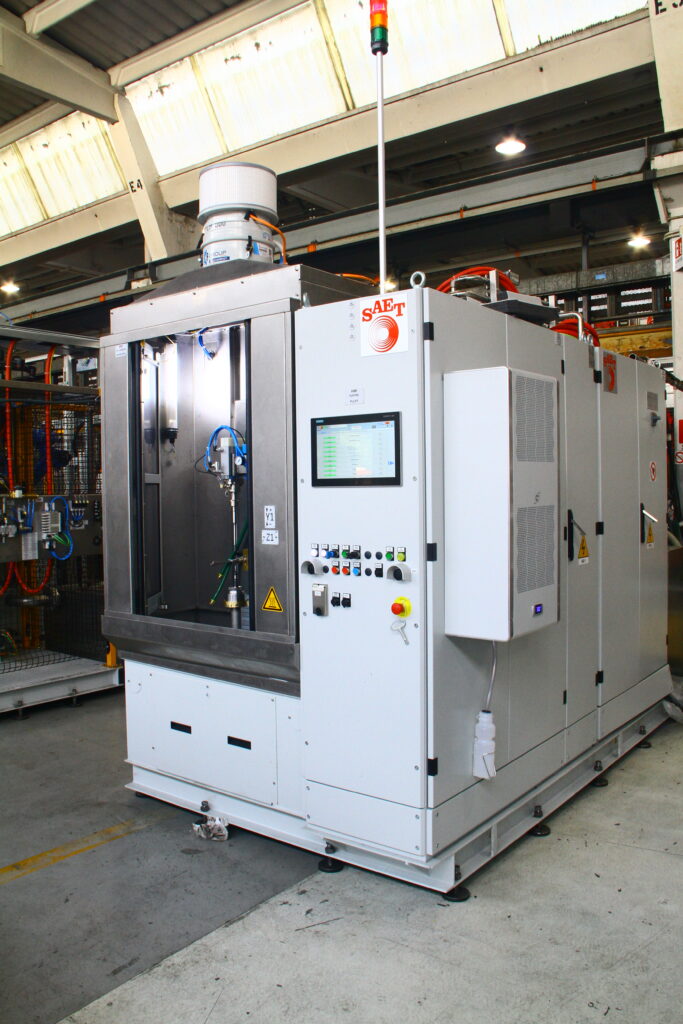

Our Vertical Scanner is a powerhouse of induction technology, engineered to deliver maximum performance within a compact footprint. Designed for versatility and durability, this machine is the ideal solution for high-precision heat treatment of components up to 20 kg.
Key Performance Features
- Dual Power Configuration: Equipped with a versatile converter (150 kW-HF / 200 kW-MF) to handle a wide range of hardening depths and materials.
- Precision Motion Control: Features a brushless motor-driven vertical scanner with speeds up to 200 mm/sec and a standard 400 mm stroke (expandable to 600 mm).

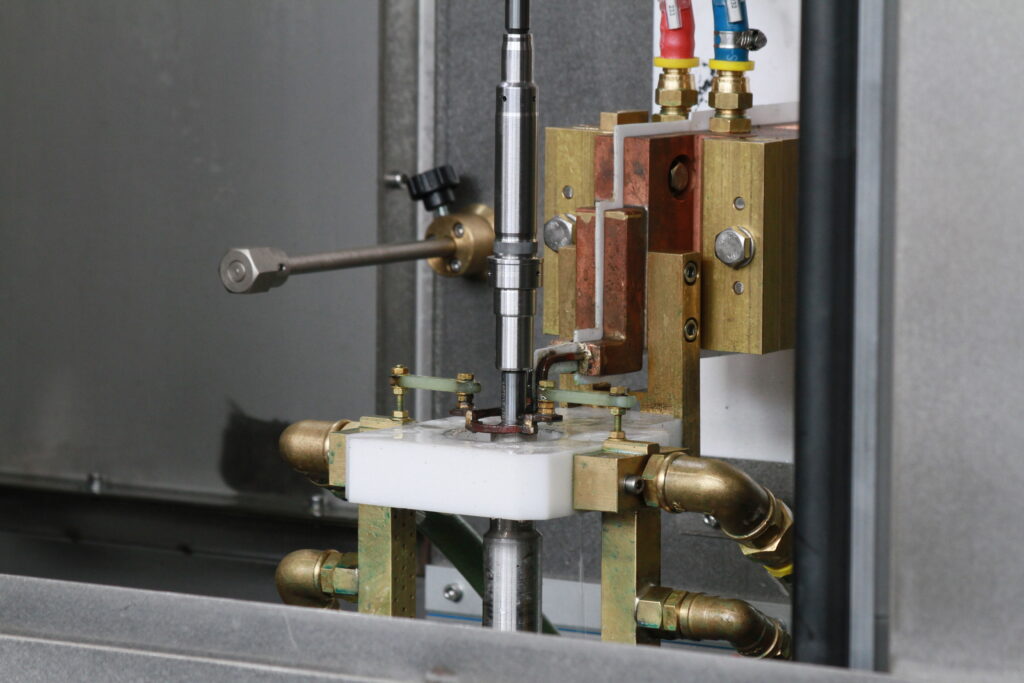

- Advanced Part Handling: Supports workpieces up to 200 mm in diameter and 300 mm in length, held securely between centers with rotation speeds of 50–350 rpm.
- Process Monitoring: Full recording of heating and quenching parameters via the Inducontrol system, ensuring 100% traceability and quality assurance.
Built for Reliability & Ease of Use
- Robust Construction: The machine is built on a unique electro-welded steel platform with a long-life stainless steel enclosure, ensuring stability and corrosion resistance.
- Seamless Integration: Designed for manual loading but “Robot Ready” for companies looking to automate their production lines.
- Smart Maintenance: Wide accessibility to the enclosure’s backside allows for quick control and maintenance, minimizing downtime.
- Industry-Leading Control: Powered by the Siemens Simatic S7-1500, providing a reliable and intuitive user interface.
Customizable Options
Tailor the machine to your specific needs with our optional upgrades:
- Vertical stroke extension to 600 mm.
- Electrical tailstock adjustment for faster setup.
- Cleanmist oil mist extraction for a cleaner work environment.
- Indexing DC motors for specialized part rotation.
